Semi Automatic
Cutting all the shapes of tubes.(Round, Square, Rectangle, Oval & C-Shaped), Cutting material. (Mild steel, Stainless steel & Non-Ferrous), Longer blade life, Economical in working, Double mittre cutting system, Ensure the smooth cutting surface & bur-free cutiting.
Accessories
- 2 nos saw blades
- Tool kit
Technical Parameter
| # | Machine Model | NSA-350P | NSA-425Y | |
|---|---|---|---|---|
| 1 | Sawing capacity | Angle | 45°/90° | 45°/90° |
| Φ80/100 | Φ120 | |||
| 60X60mm/70X70mm | 100 * 100mm | 50X45mm/75X55mm | 80 * 140mm | |
| 30X30mm/35X35mm | 40X40mm | |||
| 2 | Main Motor Power (kw) | 2.4X3.0kw | 2.8 * 3.6kw | |
| 3 | Suitable saw blade range | 275mm/325mm | oplus 300mm - Phi * 450mm | |
| 4 | Dimension (L*W*H) | 1000X800X1600 min | 1700 * 1000 * 2000min | 5 | Machine Weight (kg) | 250kg | 850kg |

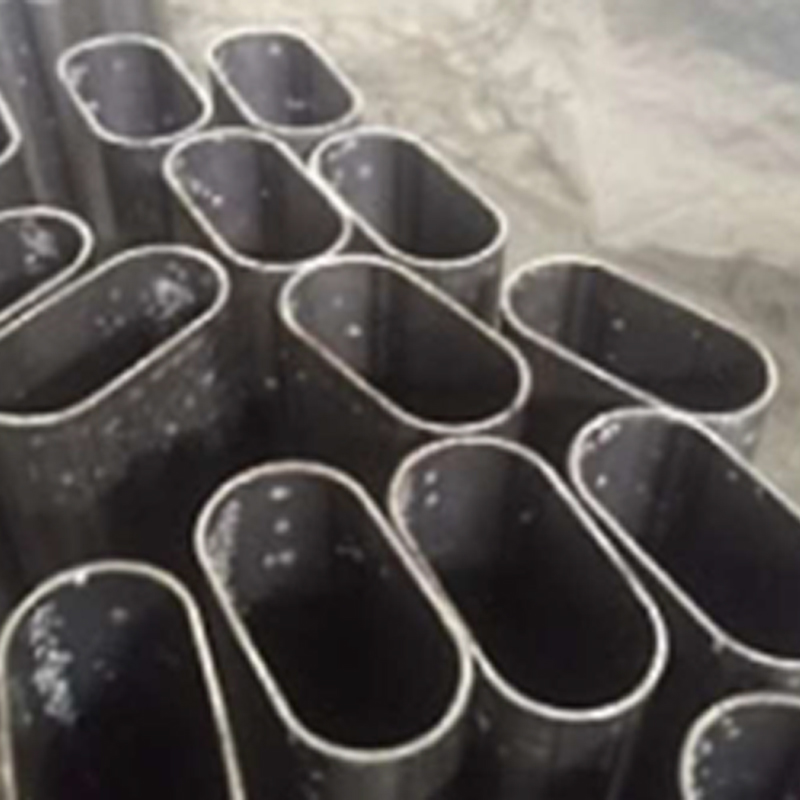

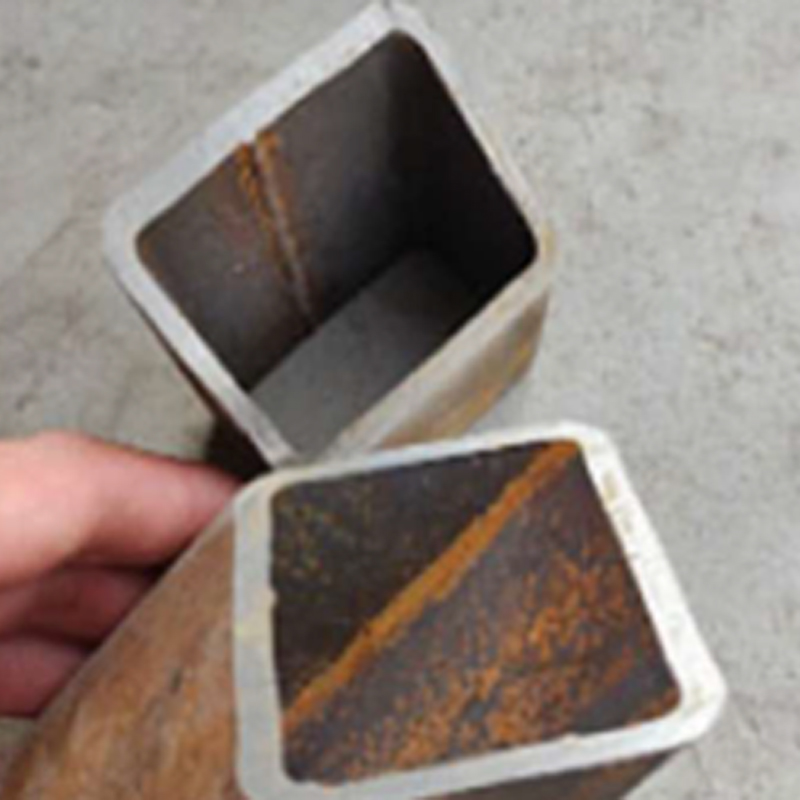

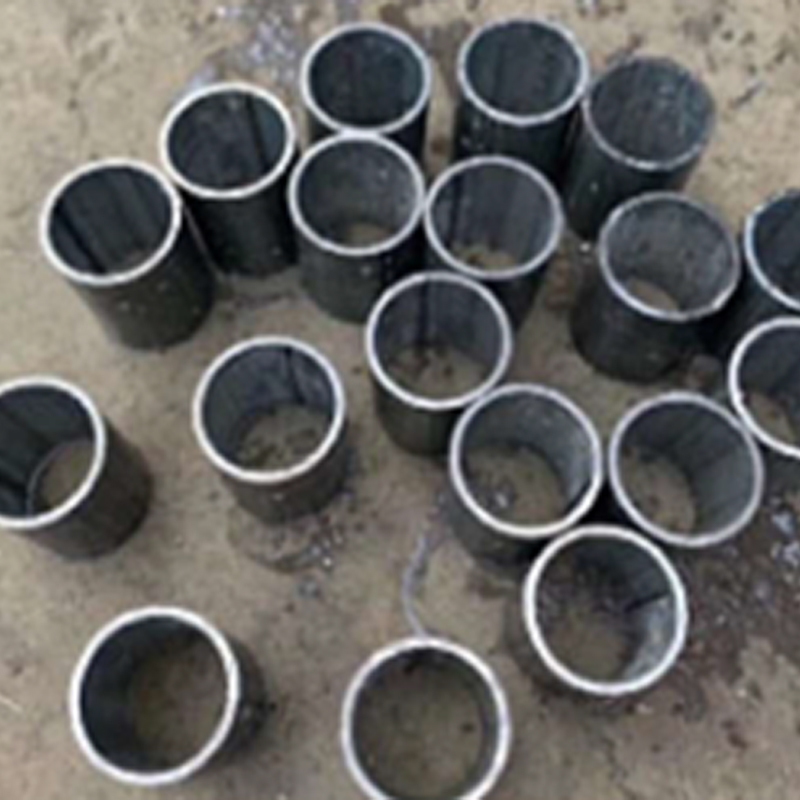

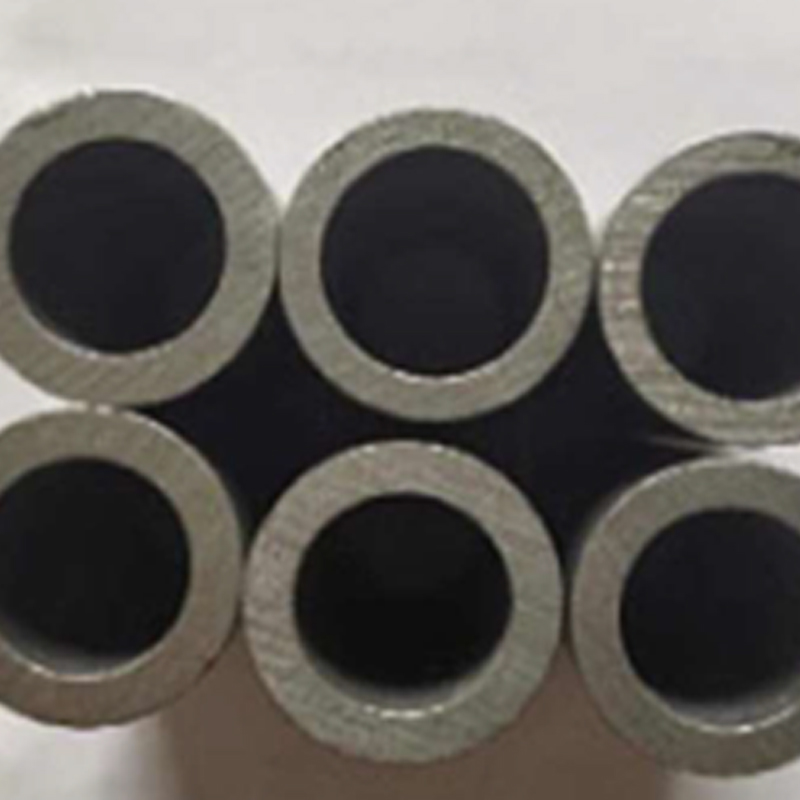

Cutting Samples
