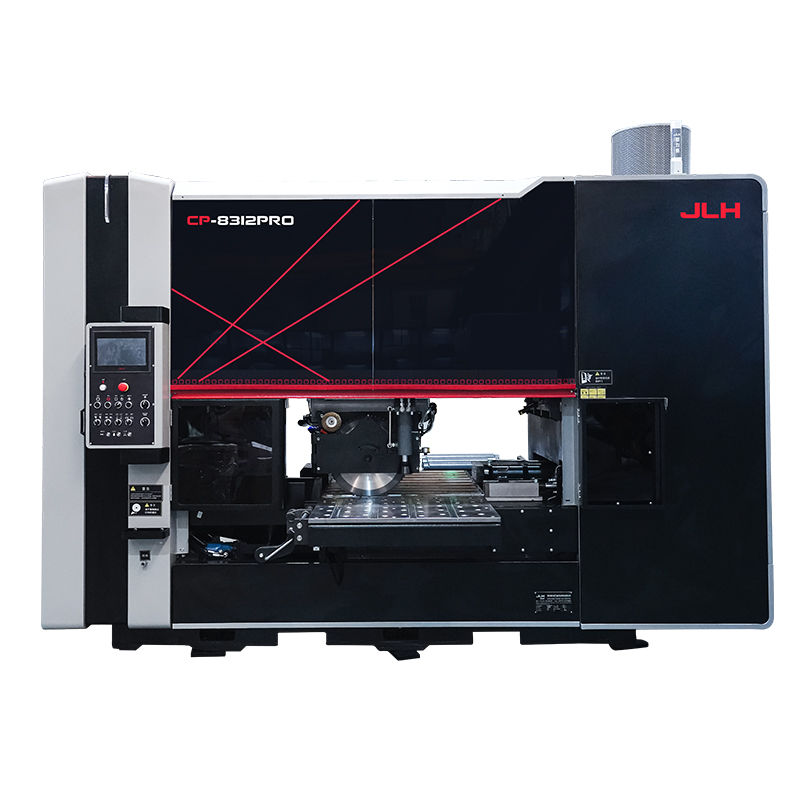

Plate Series

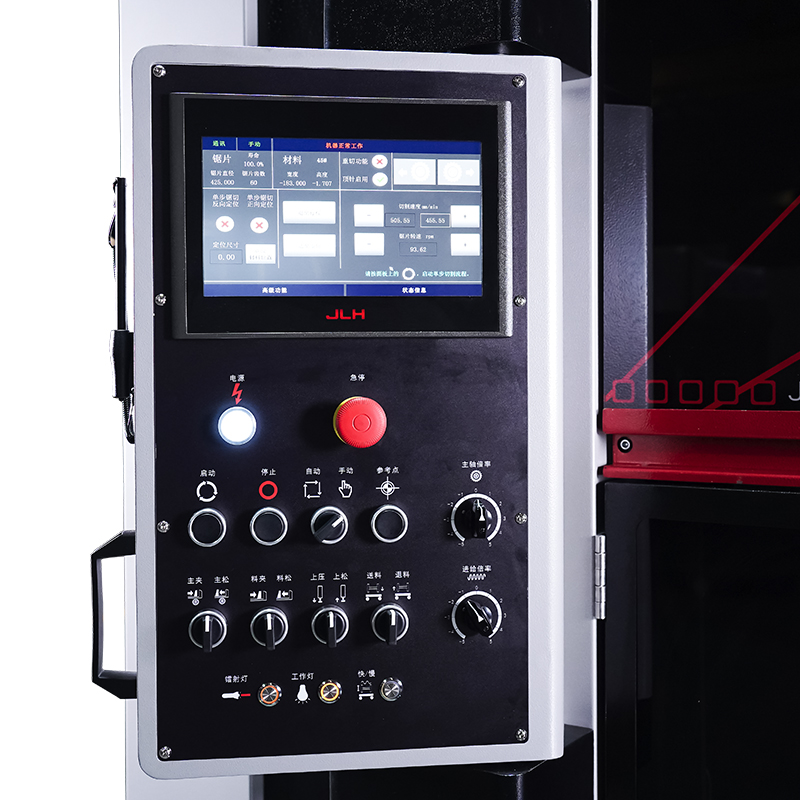

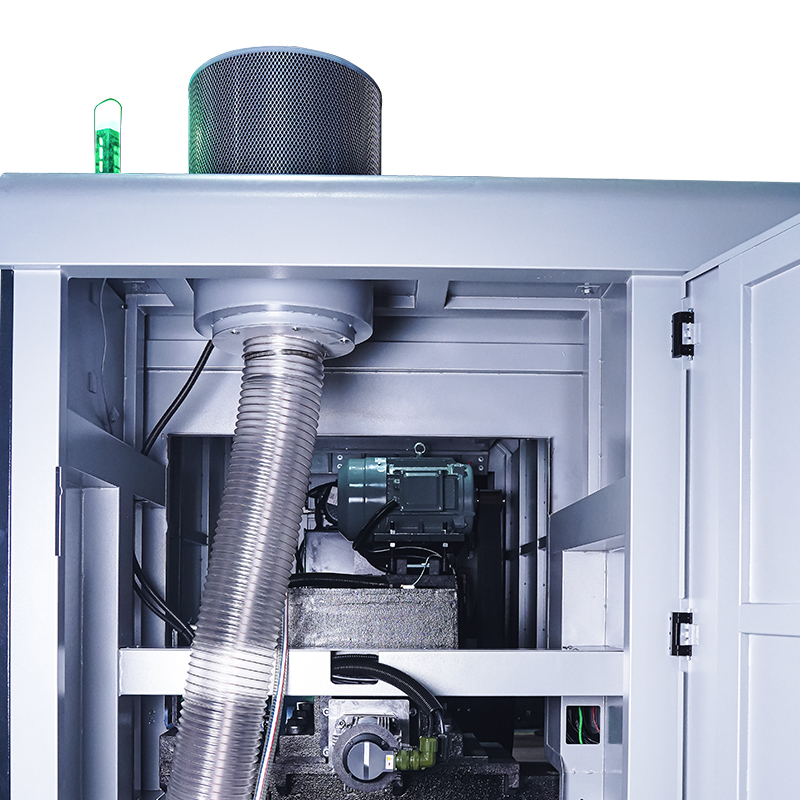

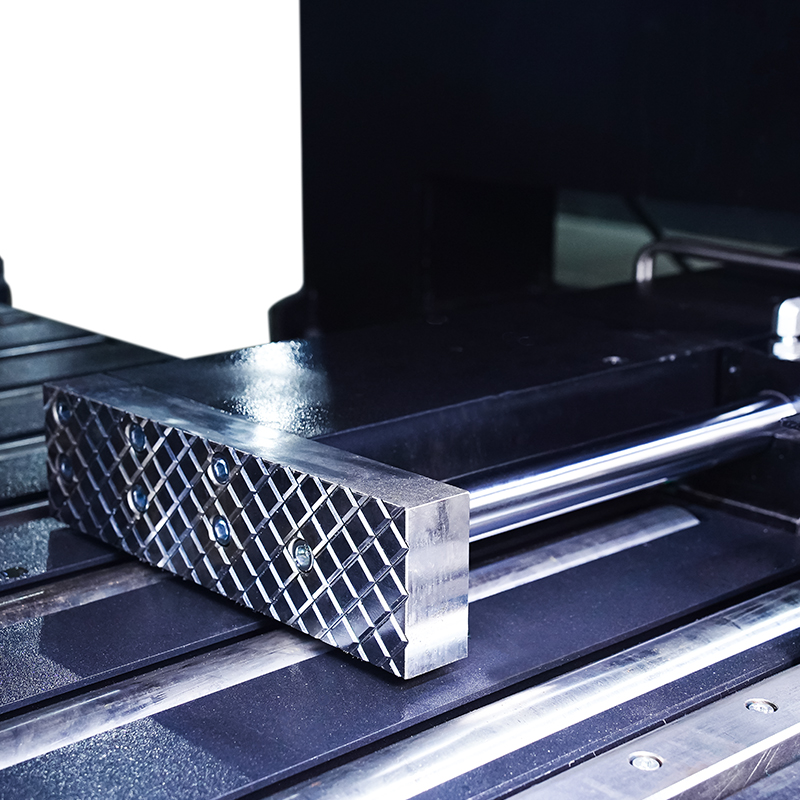

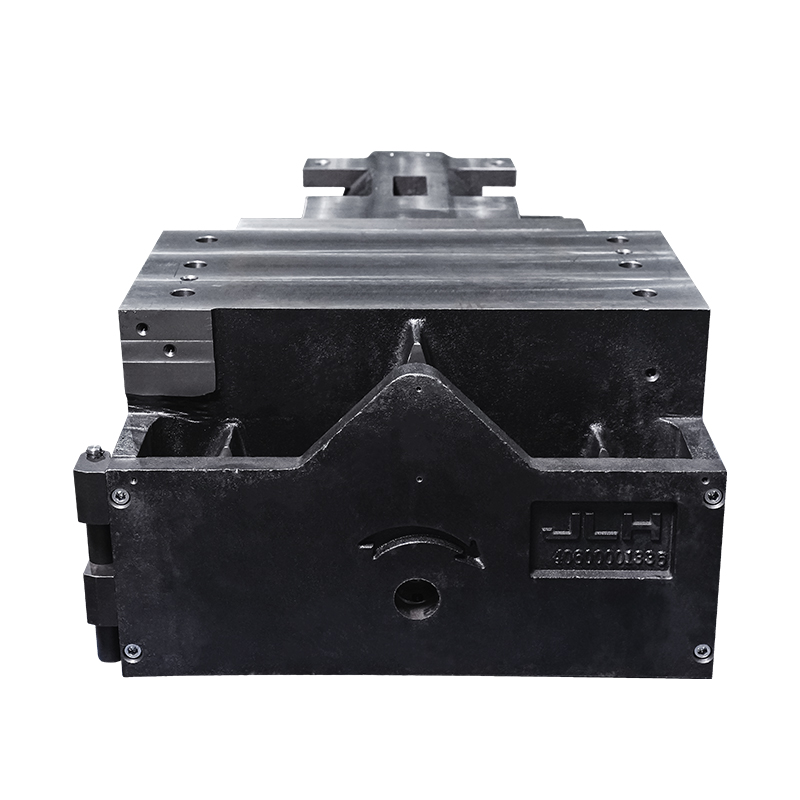

User friendly control panel, Latest horizonal feeding mechanism, Special gear box design, Lift & carry material, feeding mechanism, AI SAW MASTER, Smoke collectror, Automatic lubrication system, Air-conditioner electric panel, Motorized chip brush cleaning, Chip conveyor, LED work light, Infrared laser online marking, Hydraulic oil heat exchanger,
Accessories

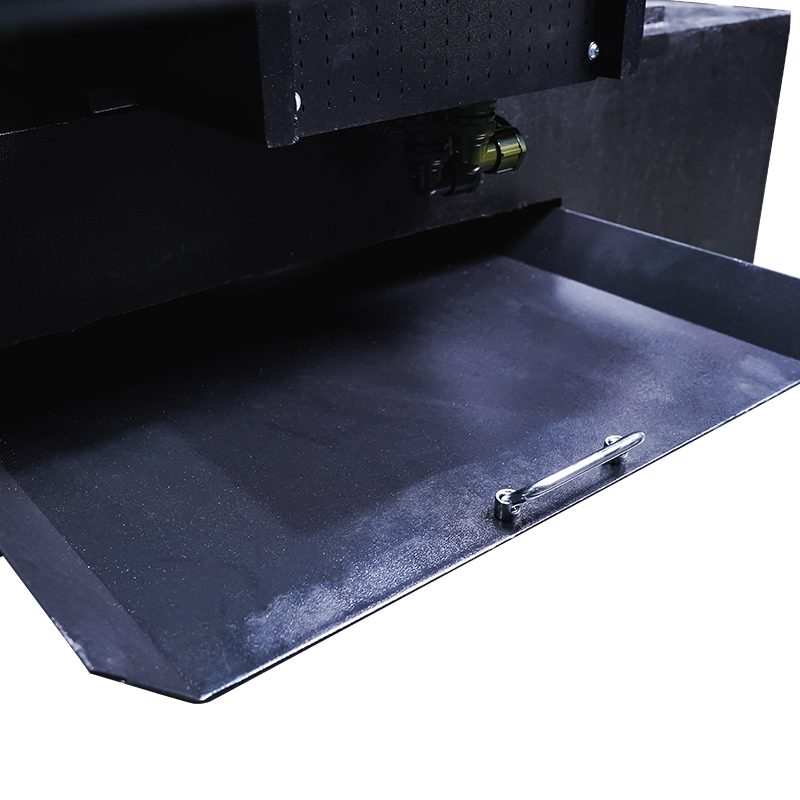

- Chip carriage trolley
- Automatic material loader
- Automatic discharge
- conveyor 2 nos saw blades
- Tool kit
Technical Parameter
| Model | Thickness (mm) | Capacity Width (mm) | Blade Size (mm) | Blade Speed (r/min) | Blade Drive Motor (kW) | Hyd. Pump Motor (kW) | Feed Motor (kW) | Hyd. Oil (L) | Cutting Oil (L) | Machine Size (mm) | Machine Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CP-700-100X | 10–100 | 30–700 | 425 × 2.7 × 2.3 | 20–100 | 17.3 | 2.2 | 1.8 | 140 | 2 | 2500 × 4150 × 2650 | 8500 / 10500 / 15000 / 28000 |
| CP-1000-100X | 10–100 | 300–1000 | φ425 × 2.7 × 2.3 | 20–100 | 17.3 | 2.2 | 1.8 | 140 | 2 | 2500 × 4480 × 2650 | - |
| CP-1600-100X | 10–100 | 690–1600 | φ425 × 2.7 × 2.3 | 20–100 | 17.3 | 7.5 | 1.8 | 140 | 2 | - | - |
| CP-2600-130X | 20–130 | 1450–2600 | φ460 × 2.7 × 2.3 | 20–100 | 23.6 | 7.5 | 2.9 | 140 | 2 | 5300 × 5000 × 2900 10050 × 6300 × 2900 | - |
