Chamfering Machine
HMI controls, Highest possible precision, length accuracy upto +-0.05mm (servo bases mechanism), Rapid work piece transport using pickup & place system/walking beam, Simulataneously facing, outer diameter ,inner diameter chamfering & radius on both side , suitable to solid bar centering and facing upto diameter 40mm, Reduce cost per component with precision and productivity.
Accessories
- 1 Set tooling.
- Tool kit
Technical Details

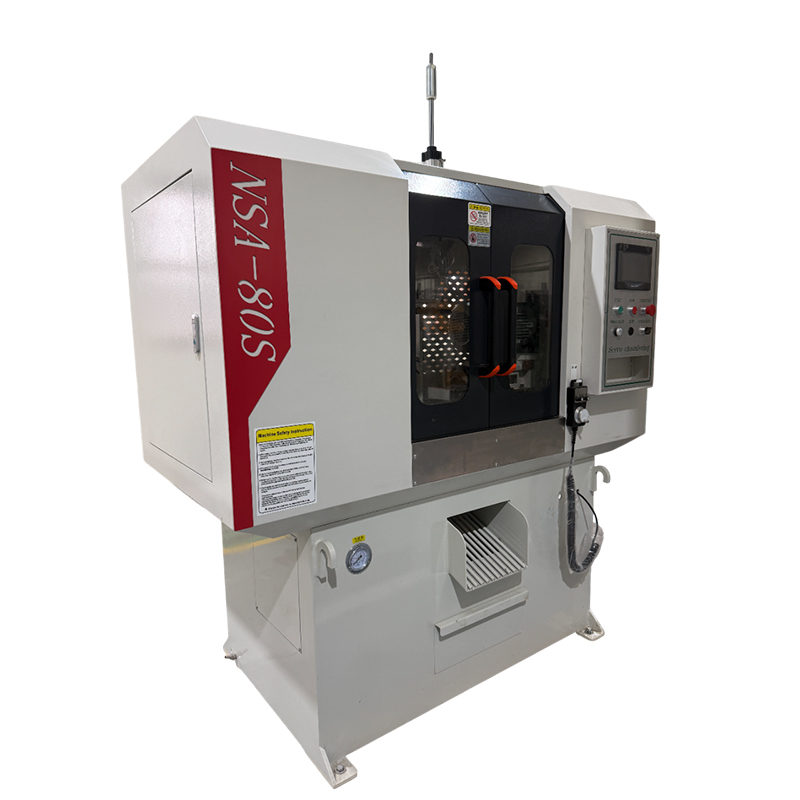

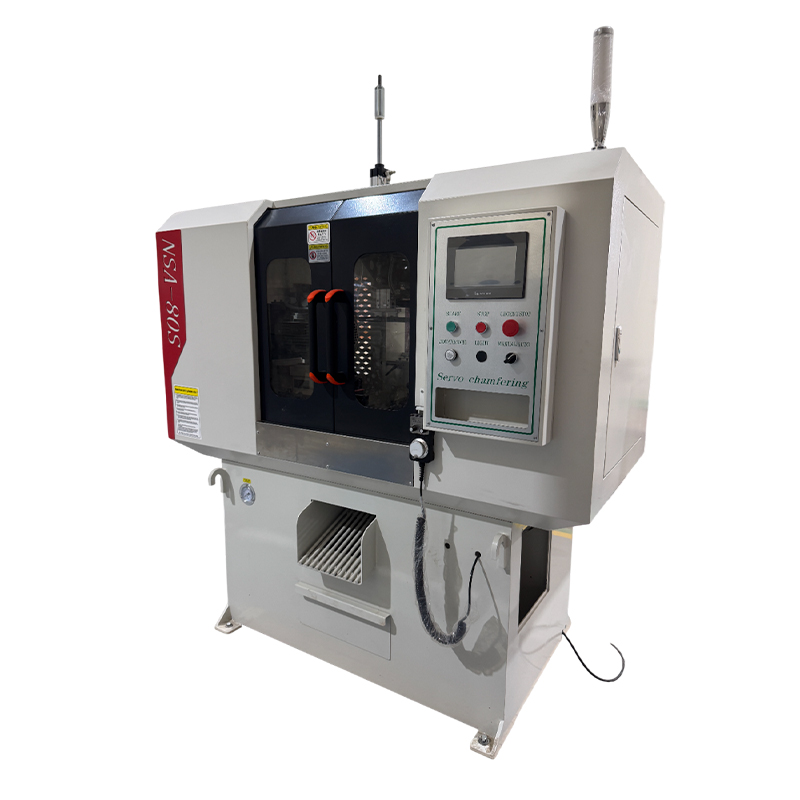

Automatic Double Head Chamfering Series
| Model | NSA-60S | 60Y | NSA-80S | 80Y | NSA-120S | 120Y |
|---|---|---|---|
| Diameter Range | 15–60 mm | 20–80 mm | 20–120 mm |
| Length Range (Short) | 25–200 mm | 25–200 mm | 25–200 mm |
| Length Range (Long) | 180–500 mm | 180–1000 mm | 180–2000 mm |
| Motor Power | 1.5 / 2.2 kW | 3.0 kW | 3.75 / 4.0 kW |
| Suitable Materials | Carbon Steel, Stainless Steel, Mild Steel, Aluminum, Copper | ||
Semi-Automatic Single Head Chamfering Series
| Model | NSA-80 | NSA-120 | NSA-150 | NSA-230 | NSA-600 (Special) |
|---|---|---|---|---|---|
| Diameter Range | 20–80 mm | 30–120 mm | 50–150 mm | 100–230 mm | On Special Request |
| Motor Power | 1.5 kW | 2.2 kW | 3.7 kW | 4.0 kW | — |

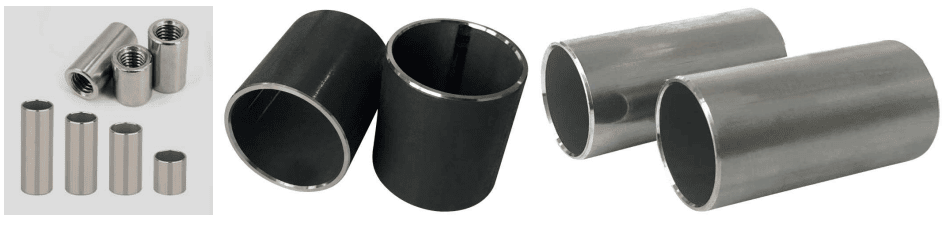

Cutting Samples
