Non-Ferrous Aluminum Machine
Features
- HMI controls
- Automatic bundle clamp
- Automatic dust suction system
- Micro-mist coolant
- LED work light
- Automatic lubrication system
- Min. short end piece
- Cutter directly
- mounted on
- special moto
Accessories
- 1 ; 2m long nos roller stand
- 2 nos saw blades
- Tool kit
Technical Parameter
| Machine Type | NSA CD-550A | NSA CD-600A | NSA CD-700A |
|---|---|---|---|
| Effective feeding distance for single time | 5-870mm | 10-1200mm | 10-1500mm |
| Suitable material | Aluminium/Brass/Copper | Aluminium/Brass/Copper | Aluminium/Brass/Copper |
| Maximum saw blade | Φ355-550mm | Φ355-600mm | Φ355-700mm |
| Max. processing size | 380×170mm | 480×195mm | 500×220mm |
| Motor power | 415V / 7.5KW | 415V / 9KW | 415V / 9KW |
| Saw blade advance speed | 0-300 m/min | 0-300 m/min | 0-300 m/min |
| Min. tailing length | 20-30mm | 20-30mm | 20-30mm |
| Blade return speed | 32 m/min | 32 m/min | 32 m/min |
| Machine accuracy | ±0.1mm | ±0.1mm | ±0.1mm |
| Spindle accuracy | 0.005mm | 0.005mm | 0.01mm |
| Positioning accuracy | 0.05mm | 0.05mm | 0.05mm |
| Machine dimension (L×W×H) | 2270×1680×1670mm | 2670×1820×1770mm | 3050×1820×1810mm |
| Machine weight | 1700Kg | 2150Kg | 2300Kg |

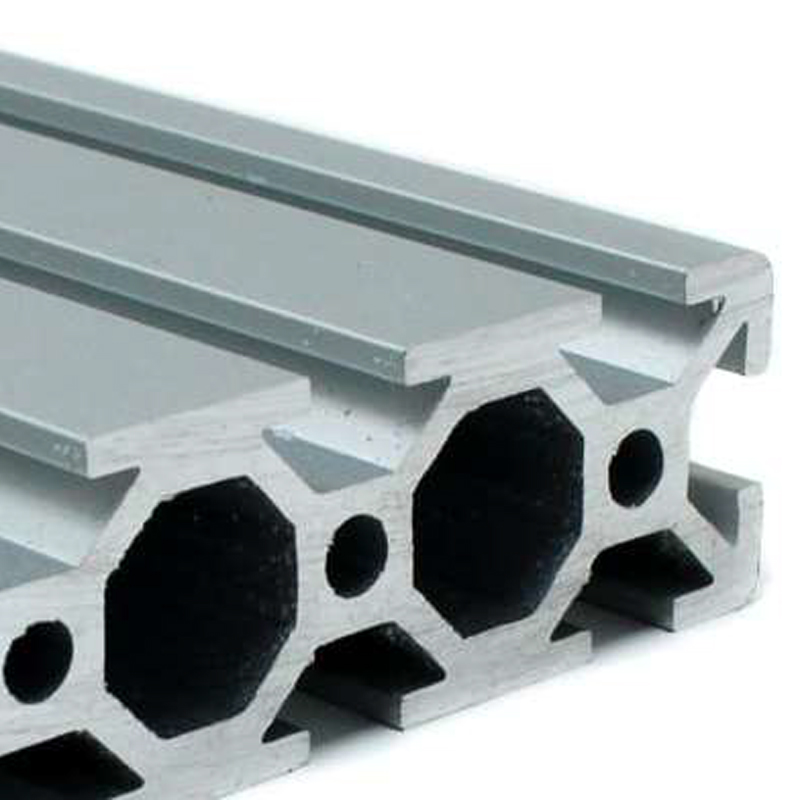

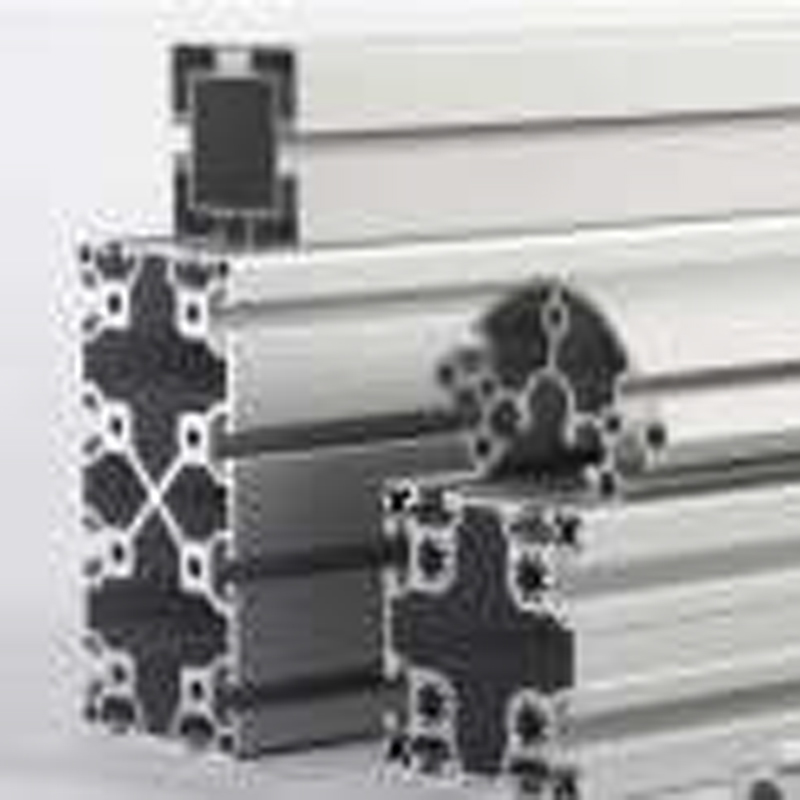

Cutting Sample
