Four Head Intelligent

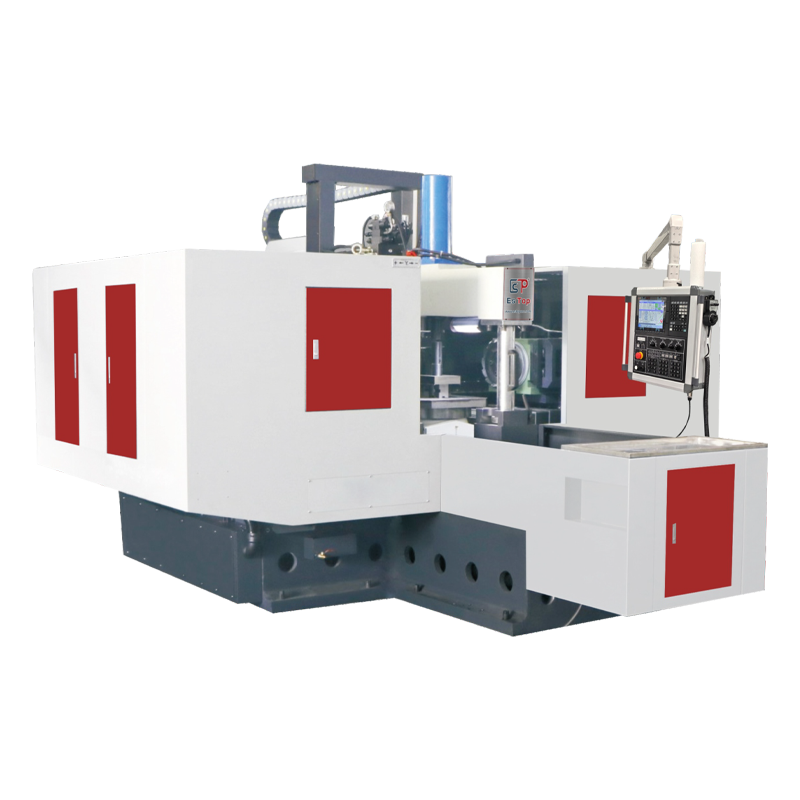

FH-450NCRG /FH-600NCRG /FH-700NCRG
Standard Accessories
-Service tools and tool box
-Air blow system for chips
-Floodlight
-Cycle indicator lamp
-Electric cabinet switch
-Full guard
-Lubrication system
-Coolant system
-Pneumatic system
-Leveling screws and leveing wedgs
| Specifications | Unit | FH-450NCRG | FH-600NCRG | FH-700NCRG |
|---|---|---|---|---|
| Width × Length of Workpiece | mm | 20 - 450 | 30 - 600 | 30 - 700 |
| Max. Thickness of Workpiece | mm | 195 | 245 | 245 / 295 |
| X1 / X2 Axis Travel | mm | 240 / 240 | 350 / 350 | 410 / 410 |
| Y1 / Y2 Axis Travel | mm | 240 / 240 | 910 | 910 |
| Z Axis Travel | mm | 650 | 810 | 1000 |
| X1 / X2 Rapid Feed Speed | mm/min | 12000 | 10000 | 10000 |
| Y1 / Y2 Rapid Feed Speed | mm/min | 12000 | 10000 | 10000 |
| Z Axis Rapid Feed Speed | mm/min | 10000 | 10000 | 10000 |
| Cutter Diameter | mm | 160 / 200 | 250 / 300 | 250 / 300 |
| Spindle Speed | rpm | (Precision) 50 - 500 (Thick) 50 - 350 | (Precision) 50 - 450 | (Thick) 100 - 300 |
| Spindle Taper | - | 47.625 / 50.8 | 47.625 | 47.625 |
| Spindle Motor | kW | (Thick) 11 (Precision) 5.5 | (Thick) 15 (Precision) 7.5 | (Thick) 15 (Precision) 7.5 |
| X1 / X2 Servo Motor | kW | 2.0 | 2.0 | 2.0 |
| Y1 / Y2 Servo Motor | kW | 2.0 | 2.0 | 2.0 |
| Z Axis Servo Motor | kW | 2.0 | 3.0 | 3.0 |
| A Servo Motor | kW | 1.0 | 2.0 | 2.0 |
| Dimensions | mm | 500 | 430 × 430 | 430 × 430 |
| Max Loading Weight | kg | 9300 | 1200 | 1200 |
| Machine Weight | kg | 9300 | 11000 | 11800 |
| Space Required | m | 3.3 × 2.9 × 2.4 | 5.1 × 3.3 × 2.4 | 5.1 × 3.5 × 2.4 |

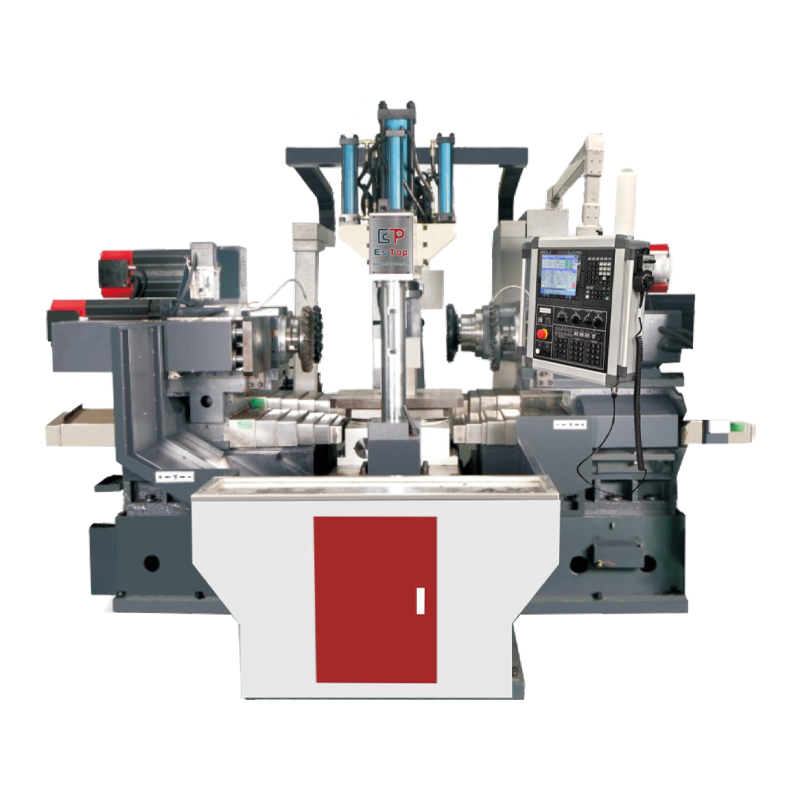

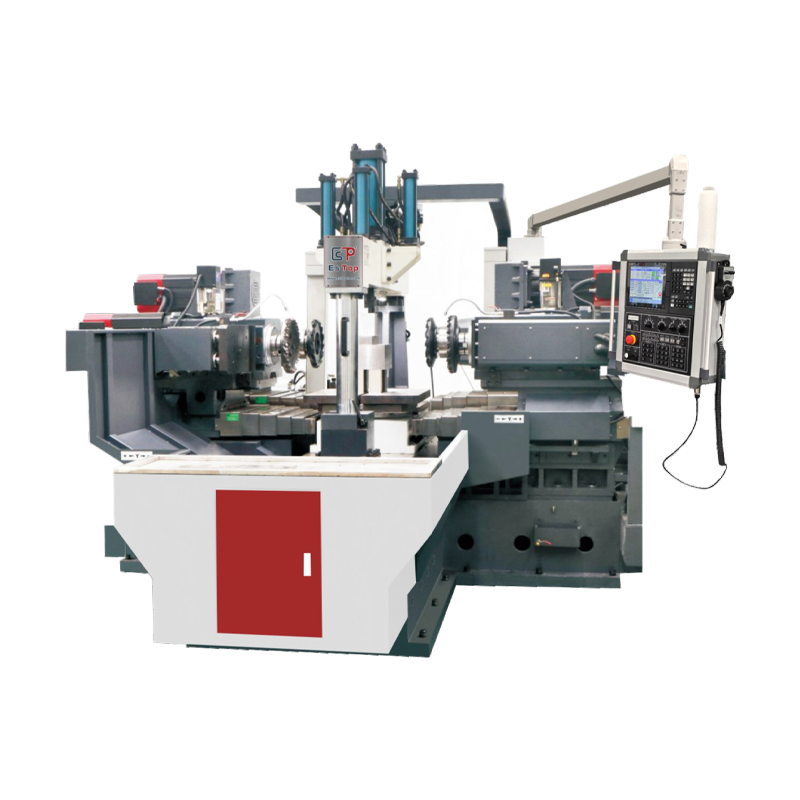

FH-850NCRG /FH-1000NCRG /FH-1300NCRG
Standard Accessories
-Service tools and tool box
-Air blow system for chips -Floodlight
-Cycle indicator lamp
-Electric cabinet switch
-Full guard
-Lubrication system
-Coolant system
-Pneumatic system
-Leveling screws and leveing wedgs
-Cutter head.
-Automatic chip removal
-Electric cabinet air conditioner
-Hydraulic lock
-Three axis full track
-Head double V flat rail
| Specifications | Unit | FH-850NCRG | FH-1000NCRG | FH-1300NCRG |
|---|---|---|---|---|
| Width × Length of Workpiece | mm | 60 - 850 | 50 - 1000 | 80 - 1300 |
| Max. Thickness of Workpiece | mm | 245 / 295 | 245 / 295 | 245 / 295 |
| X1 / X2 Axis Travel | mm | 450 / 460 | 550 / 540 | 660 / 650 |
| Y1 / Y2 Axis Travel | mm | 450 / 460 | 550 / 540 | 660 / 650 |
| Z Axis Travel | mm | 2200 | 2450 | 2600 |
| X1 / X2 Rapid Feed Speed | mm/min | 8000 | 8000 | 8000 |
| Y1 / Y2 Rapid Feed Speed | mm/min | 8000 | 8000 | 8000 |
| Z Axis Rapid Feed Speed | mm/min | 8000 | 8000 | 8000 |
| Cutter Diameter | mm | 250 / 300 | 250 / 300 | 250 / 300 |
| Spindle Speed | rpm | (Precision) 100 - 350 (Thick) 50 - 300 | (Precision) 100 - 350 (Thick) 50 - 300 | (Precision) 100 - 350 (Thick) 50 - 300 |
| Spindle Taper | - | NT50 / 47.625 | NT50 / 47.625 | NT50 / 47.625 |
| Spindle Motor | kW | (Thick) 22 (Precision) 11 | (Thick) 22 (Precision) 11 | (Thick) 22 (Precision) 11 |
| X1 / X2 Servo Motor | kW | 2.0 | 2.0 | 2.0 |
| Y1 / Y2 Servo Motor | kW | 2.0 | 2.0 | 2.0 |
| Z Axis Servo Motor | kW | 4.5 | 4.5 | 4.5 |
| A Servo Motor | kW | 3.0 | 3.0 | 3.0 |
| Dimensions | mm | 780 × 780 | 780 × 780 | 780 × 780 |
| Max Loading Weight | kg | 2400 | 2400 | 3500 |
| Machine Weight | kg | 16000 | 18000 | 21000 |
| Space Required | m | 5.5 × 3.8 × 2.4 | 6.1 × 4.0 × 2.45 | 6.5 × 4.1 × 2.4 |
