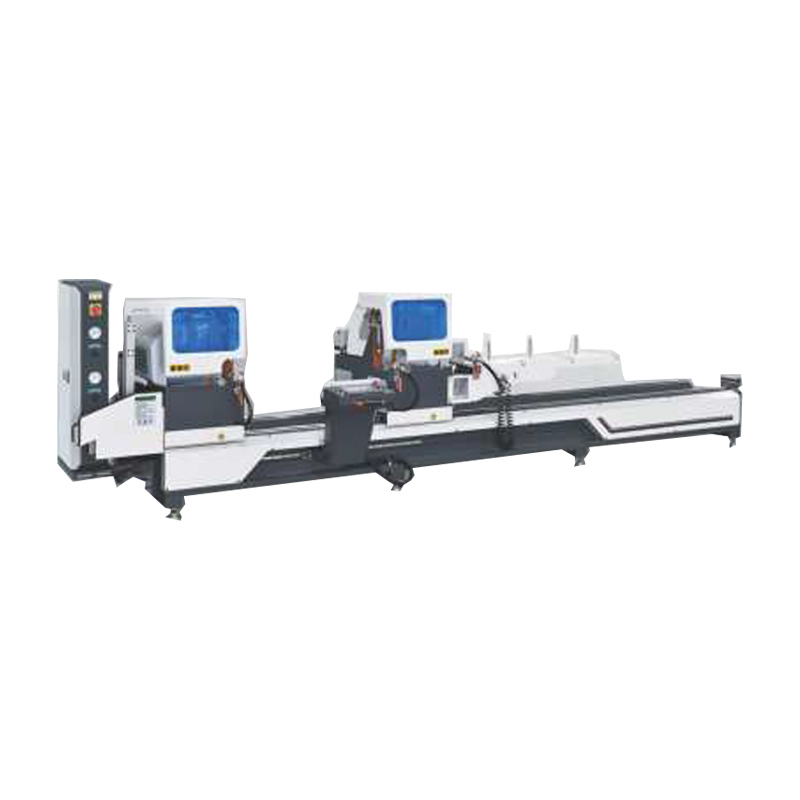

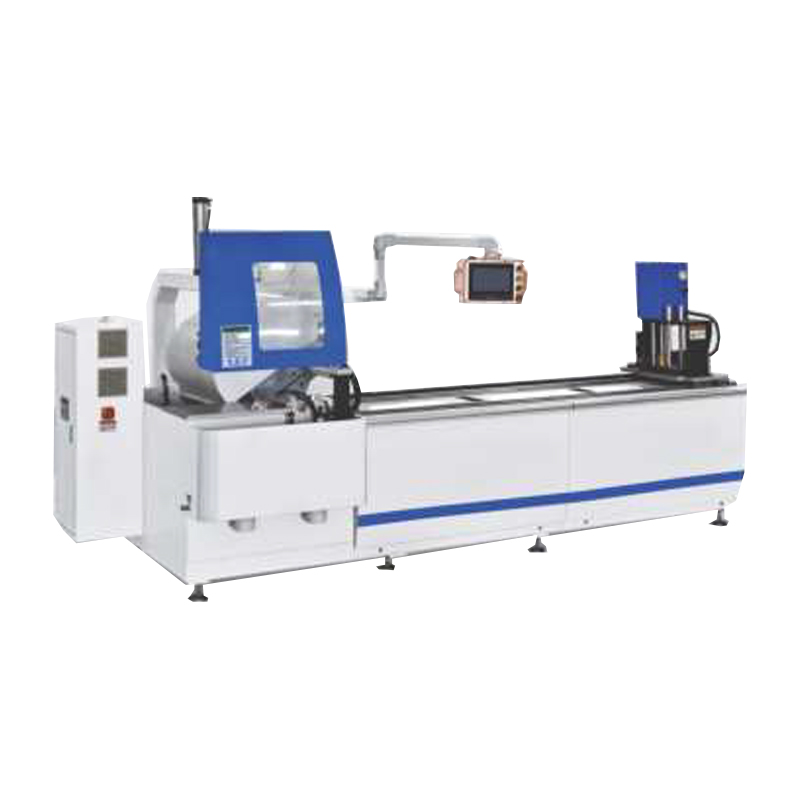

Non-Ferrous Miter Cutting Machine
Features
- HMI controls
- Automatic head rotation at desired angle
- Automatic dust suction system
- LED work light
- Automatic lubrication system
- Micro-mist coolant
- Cutter directly mounted on special Motor motor
Accessories
- 2 nos saw blades
- Tool kit
Technical Parameter
| Machine Type | NSA CD-560DM | NSA CD-610DHM |
|---|---|---|
| Control Mode | CNC control system | CNC control system |
| Main Motor Power | 7.5 KW | 4KWx2 |
| Main Motor Speed | 1000-3000RPM | 1000-3000RPM |
| Saw Blade Size | Φ405-600x30x100T | Φ550x30x100T |
| Cutting Profile Width | 200mm | 160mm |
| Cutting Profile Height | 200mm | 200mm |
| Moving Head Positioning Speed | 32m/min | 32m/min |
| Rated Voltage | 415V/50Hz | 415V/50Hz |
| Rated Air Pressure | 0.6-0.8MPa | 0.6-0.8MPa |
| Machine Dimension (LXWXH) | 4500x1620x1770mm | 6500x1520x1670mm |
| Single Feeding Stroke | 870mm | 4200mm |
| Cutting Angle | 45° - 135° | Inner 45°-90° |
Cutting Sample
